Dual Vessel Whole House Water Treatment Plant

Home/Products/Dual Vessel Whole House Water Treatment Plant

WATER TREATMENT PLANTDUAL FRP VESSEL

Dual Vessel Whole House Water Treatment Plant

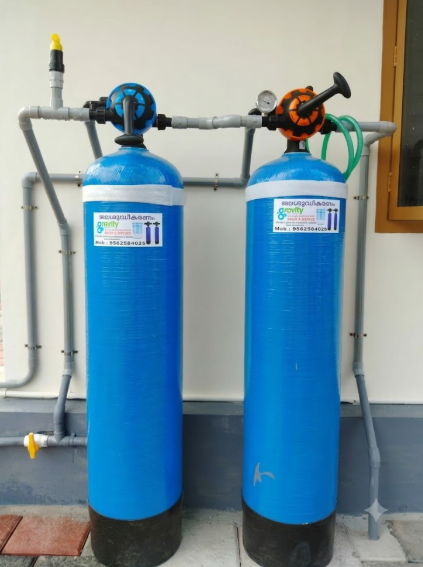

Engineered for independent houses, villas, and commercial properties with severe well or borewell water contamination across Kerala. Features two heavy-duty FRP composite pressure vessels installed in series with interconnected bypass plumbing, dual top multiport valves with pressure gauge, and automatic backwash capabilities. Stage 1 eliminates heavy iron, mud, and suspended solids, while Stage 2 adsorbs odors, chemical chlorine, organic colors, or provides ion-exchange water softening. Delivers crystal clear, stain-free, and odor-free water across all household taps and overhead tanks.

SYSTEM SPECIFICATIONS

Flow Capacity: 2,000 to 5,000 Litres / Hour Whole-House Output

1 Yr Warranty & On-Site Support

Ideal for Villas & Independent Houses & Apartments & Residential Communities

Purification: Complete dual-stage treatment protecting entire plumbing, geysers, and appliances

Enrichment: Eliminates yellow iron stains, turbidity, foul well odors, and hard minerals

Design: Pre-plumbed bypass manifold with durable wall mounting clamps

Quality Assured | Genuine Gravity Service Support

WhatsApp Inquiry Call +91 95625 84025

Technical Specifications & Parameters

Parameter	Specification
System Configuration	Dual Column FRP Composite Pressure Vessels in Series
Stage 1 Filtration	Iron & Turbidity Removal (BIRM / Manganese Greensand + Quartz Sand)
Stage 2 Filtration	Activated Carbon / Softener Resin (Customized based on water test)
Flow Capacity	2,000 to 5,000 Litres / Hour Whole-House Output
Valve Setup	Dual Multi-Port Valves with Pressure Gauge & Bypass Manifold
Testing Integration	Complimentary Pre-Installation Water Testing for Custom Media Ratio
Warranty & Service	1-Year On-Site Comprehensive Warranty with Free Installation
